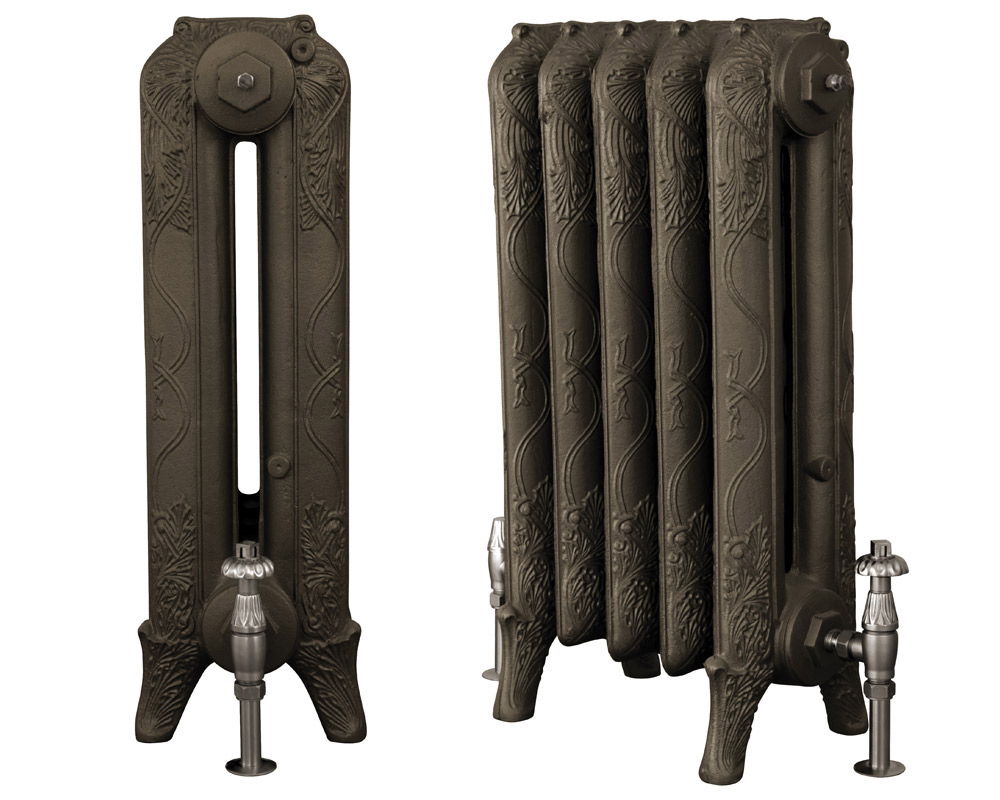

Ribbon 2 Column Cast Iron Radiators

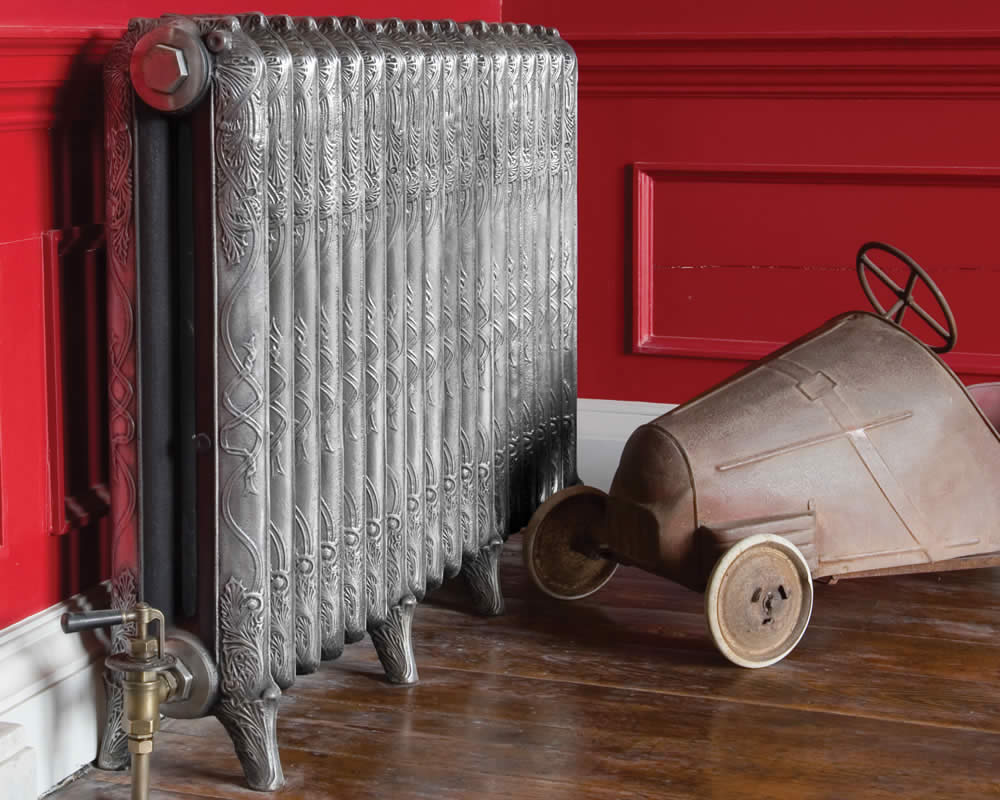

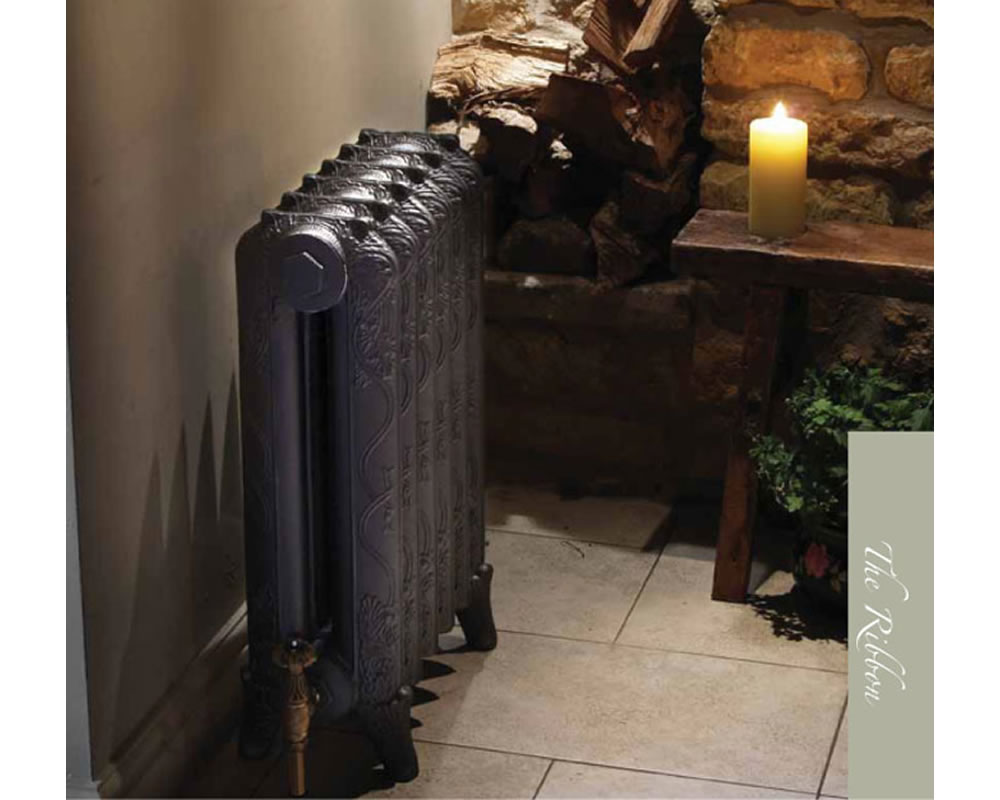

Ribbon 2 column cast iron radiator installed in period house

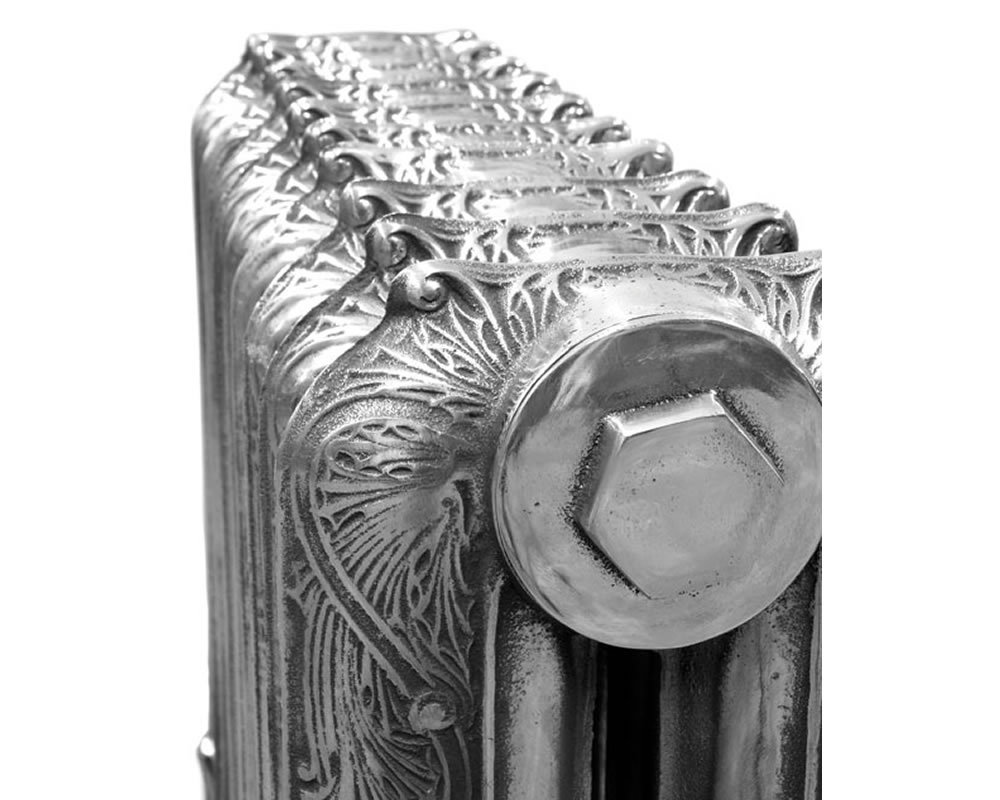

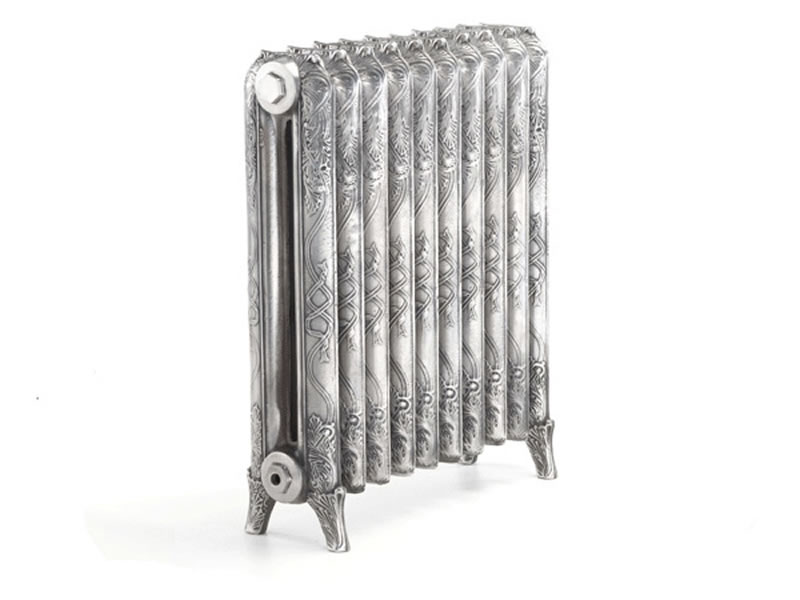

Hand Burnished


Available in 3 heights and features a Celtic band pattern gracefully flowing down the radiator.

Originally manufactured by the American Radiator Company, circa 1880, originals of this model can be typically found in churches throughout the world.

If a higher heat output is required we also offer the Ribbon 4 column radiator.

All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.


See Bespoke Finishes

360° View

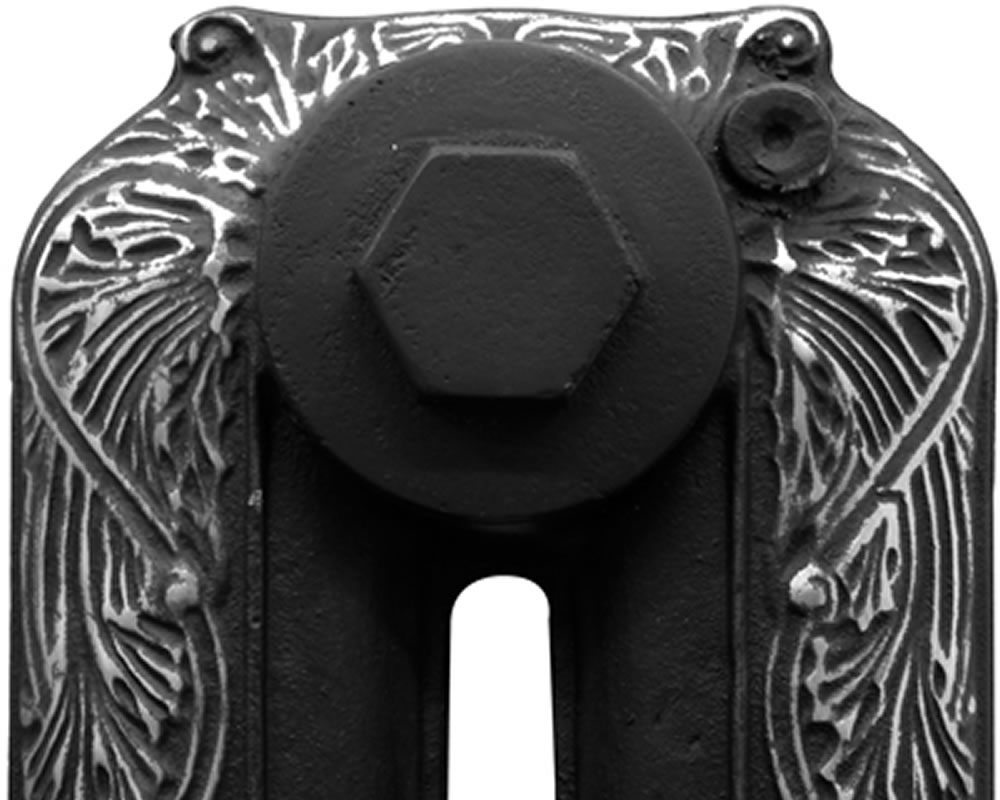

Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

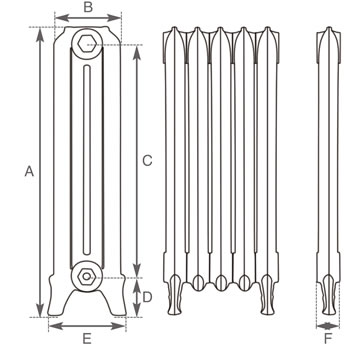

Ribbon 2 column cast iron radiator measurements

* per section

Code Column
ΔT 50°* ΔT 60°* Weight (KG)*
BTUs Watts BTUs Watts Empty Filled
TBK132/133 2 500 185 340 110 215 67 227 67 282 83 8.3 10
TBK116/117 2 650 185 485 110 215 67 298 87 371 109 10.9 12.9
TBK134/135 2 795 185 630 110 215 67 388 114 490 144 11.8 14.6

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN205 HAN206 LD055 LD056 LD104 RTO035
TBK132/133 Yes Yes Yes Yes Yes Yes No
TBK116/117 Yes Yes Yes Yes Yes Yes No
TBK134/135 Yes Yes Yes Yes Yes Yes No

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TBK132/133 9 (18) 9 (22) 10 (30)
TBK116/117 9 (14) 9 (17) 10 (23)
TBK134/135 9 (11) 9 (13) 10 (18)
