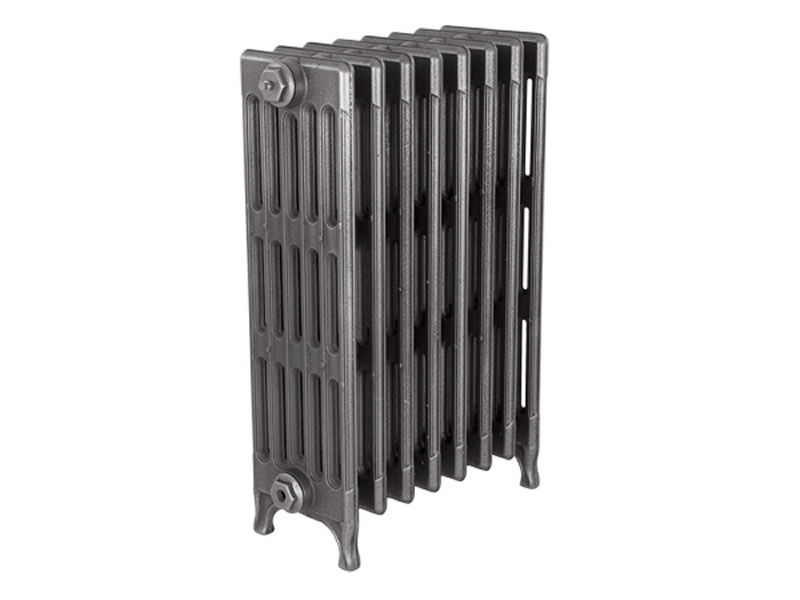

Victorian 6 Column Cast Iron Radiators

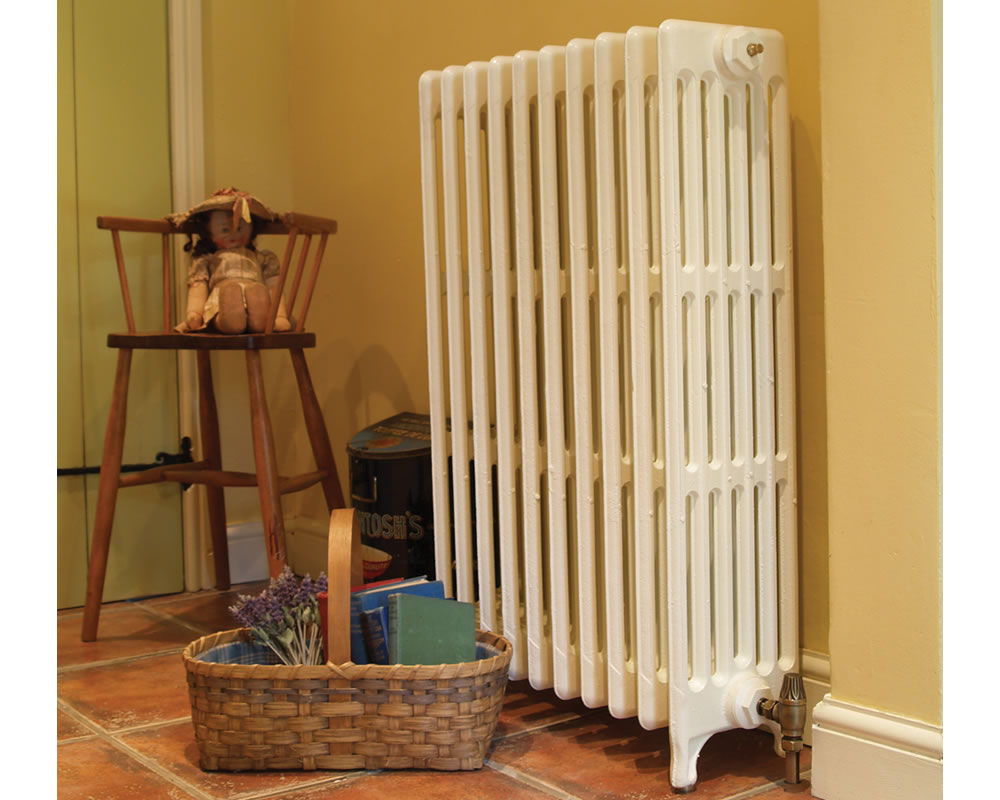

Victorian 6 column cast iron radiator in parchment white

Parchment White


Available in 4 heights. A traditional Victorian radiator which was first produced in America in the 1880s.

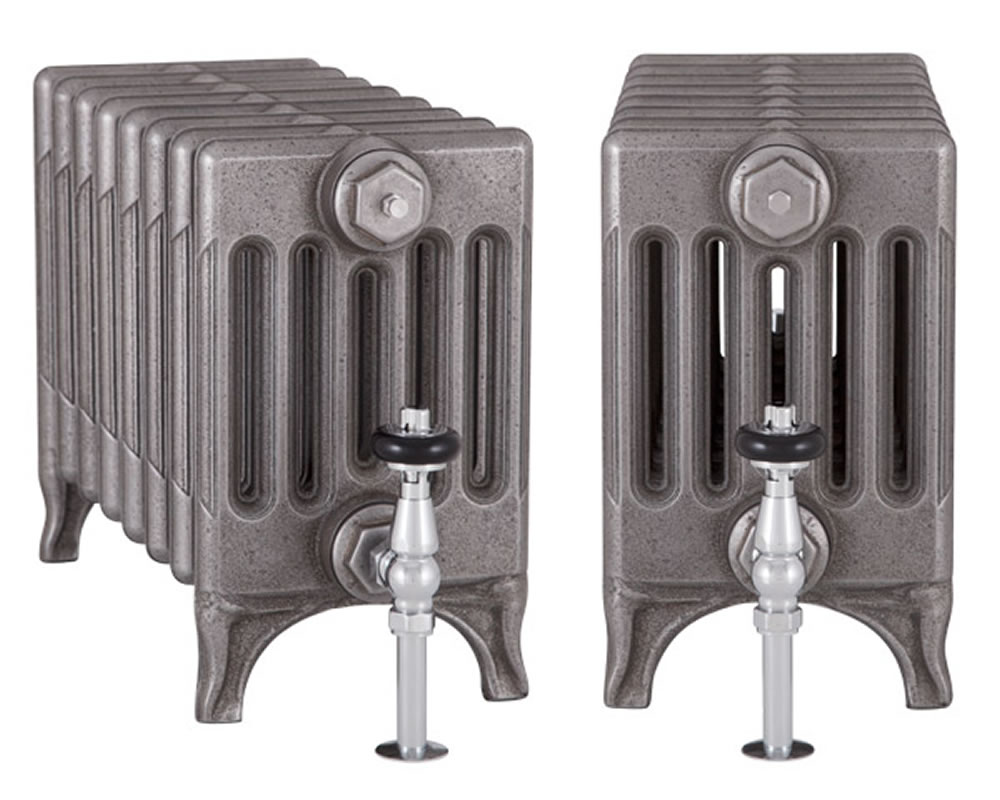

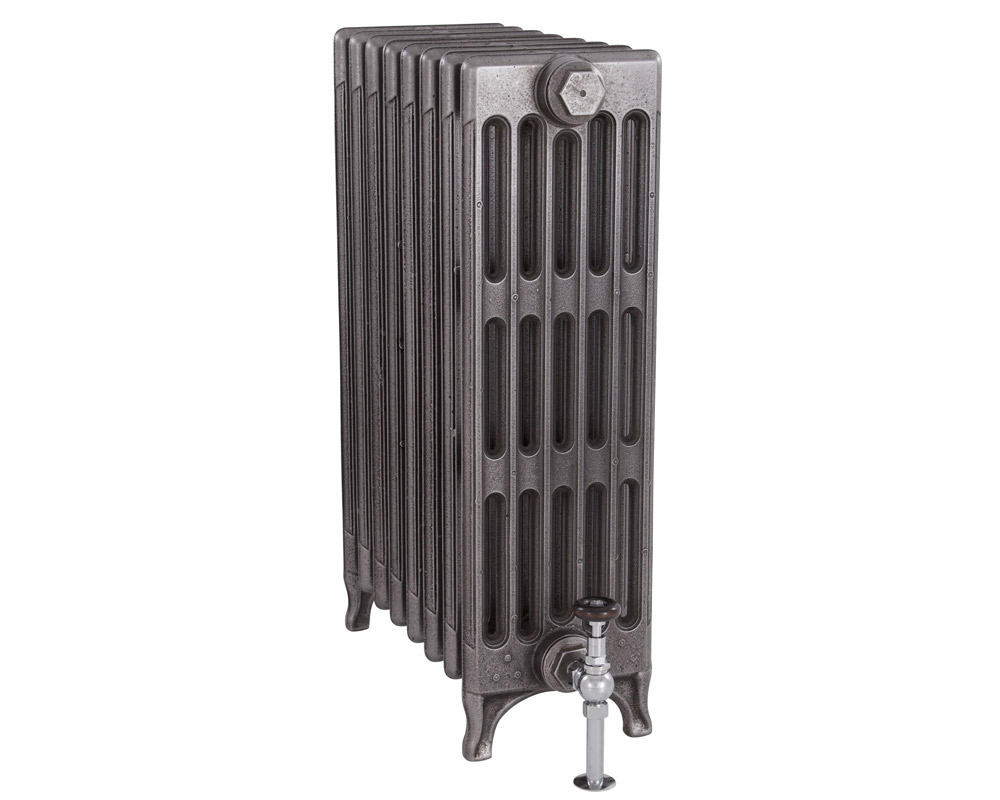

When heating large spaces, the 6 Column Victorian's remarkable heat output makes it the obvious choice. Yet it's clean and simple design gives a contemporary feel especially when hand burnished.

Also available - the 2 column Victorian, 4 column Victorian and the 9 column Victorian radiator.

All our cast iron radiators can be hand gilded. Click below to view just a few of the bespoke options available.

See Bespoke Finishes

360° View

Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

Victorian 6 column cast iron radiator measurements

* per section

Code Column
ΔT 50°* ΔT 60°* Weight (KG)*
BTUs Watts BTUs Watts Empty Filled
LD213/214 6 365 220 220 110 60 217 64 257 75 4.3 5
JJC078/079 6 625 220 480 105 52 360 105 460 135 10.1 11.2
LD208/209 6 740 220 600 105 60 440 129 561 165 9.3 10.5
LD078/079 6 920 215 790 95 58 559 164 644 189 11 12.4

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN104 HAN205 HEF035 LD055 LD056 LD206
LD213/214 Yes Yes Yes Yes Yes Yes Yes
JJC078/079 Yes Yes Yes Yes Yes Yes Yes
LD208/209 Yes Yes Yes Yes Yes Yes Yes
LD078/079 Yes Yes Yes Yes Yes Yes Yes

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Minimum no. of sections Minimum no. of sections Minimum no. of sections
LD213/214 9 (19) 10 (23) 11 (31)
JJC078/079 11 (11) 11 (14) 12 (19)
LD208/209 9 (9) 10 (12) 11 (16)
LD078/079 10 (7) 10 (9) 11 (12)
