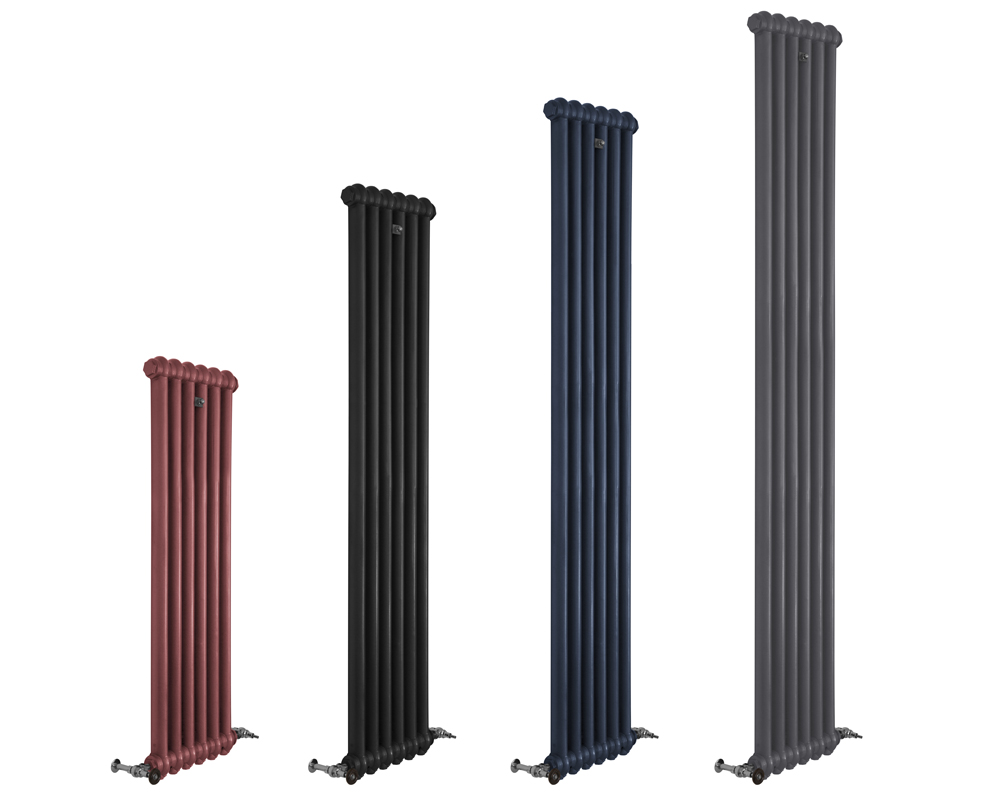

Amberley 1 Column Cast Iron Radiator

Foundry Grey


Available in a choice of heights, bespoke build to your required length. These radiators are wall mounted.


See Bespoke Finishes
Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

* per section

Code Column
ΔT 50°* ΔT 60°* Weight (KG)*
BTUs Watts BTUs Watts Empty Filled
TCR001 1 1076 73 68 279 82 352 103 6.12 7.62
TCR002 1 1476 73 68 390 114 491 144 8.09 10.21
TCR003 1 1676 73 68 446 131 563 165 8.81 11.23
TCR004 1 1876 73 68 498 146 631 185 10.01 13.02

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN205 LD055 LD056 LD104 LD206 RTO035
TCR001 No No No No No No No
TCR002 No No No No No No No
TCR003 No No No No No No No
TCR004 No No No No No No No

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TCR001 8 (15) 9 (18) 10 (24)
TCR002 8 (11) 9 (13) 10 (18)
TCR003 8 (9) 9 (11) 10 (15)
TCR004 8 (8) 9 (10) 10 (14)
