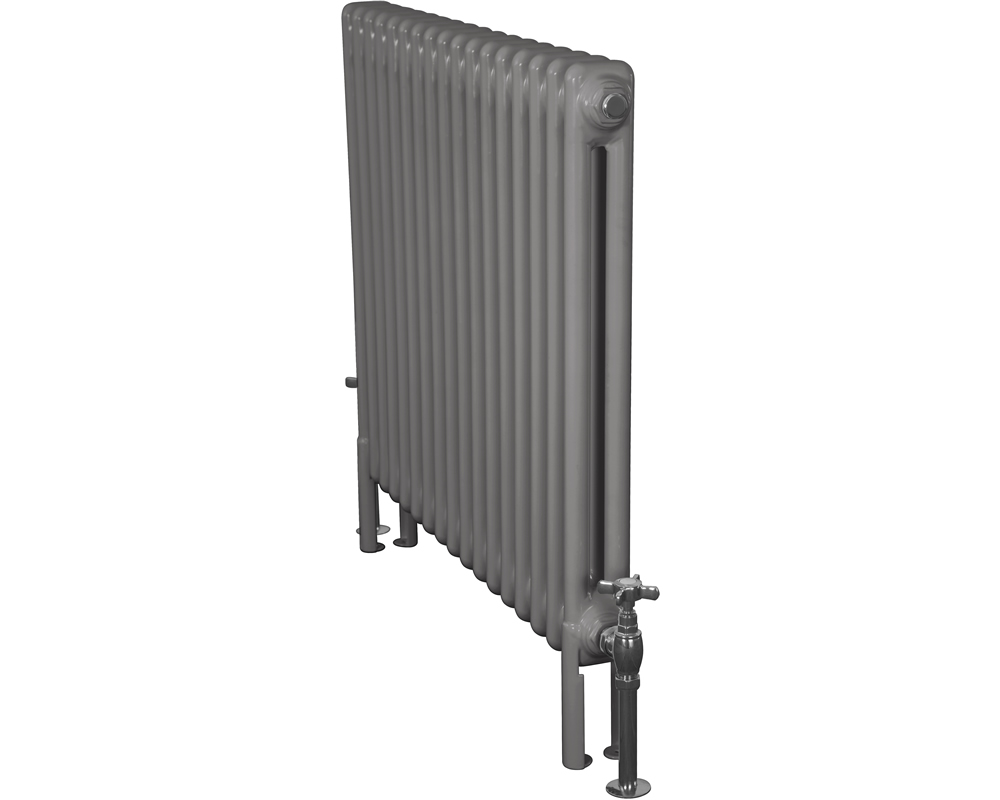

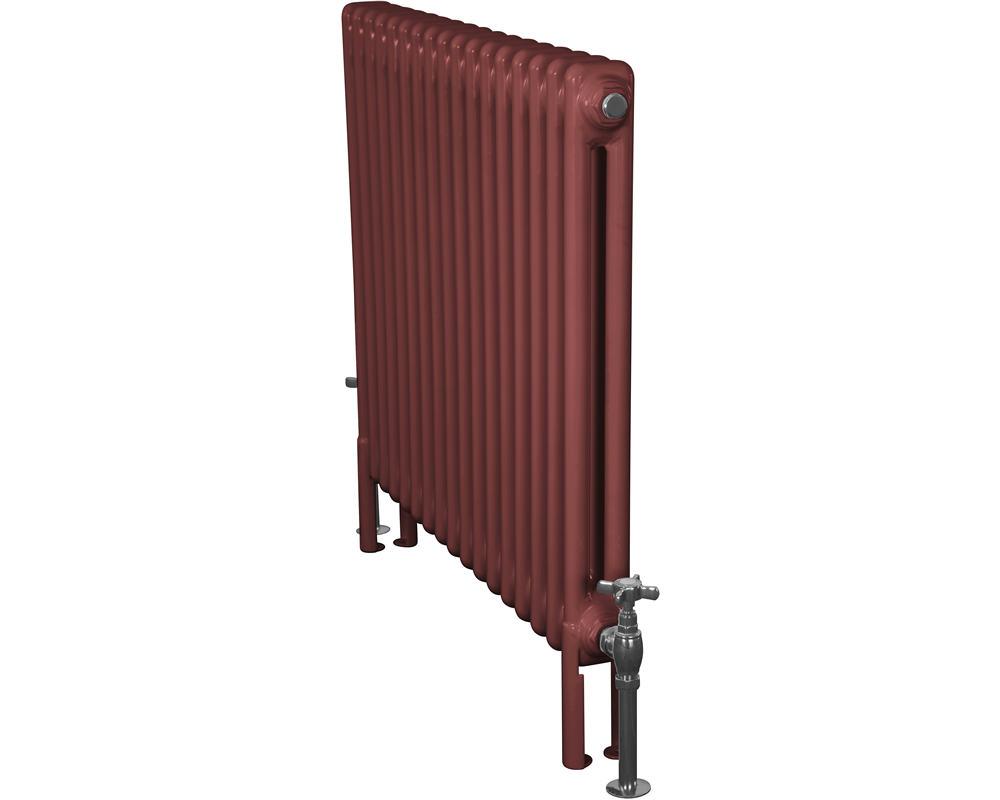

Enderby 2 Column, 17 Section Steel Radiator - 710mm

Enderby 2 column 17 section 710mm steel radiator all white

Farrow & Ball All White

Description

Enderby 2 column, 17 section steel radiator - height 710mm

Product Code

TOW202
Installation Guide

Can be painted in any non-metallic RAL colour of your choice.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

Dimensions / Further Details

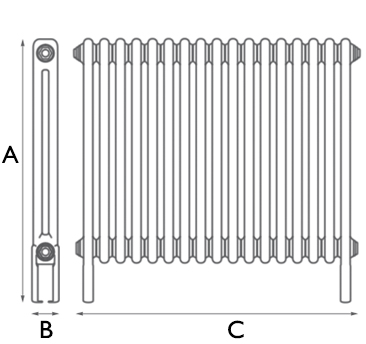

Enderby 2 column 17 section 710mm steel radiator measurements

*+/- 3% tolerance

Code A
(mm)
B
(mm)
C
(mm)
Inlet Size ΔT 50° ΔT 60°
BTUs Watts BTUs Watts
TOW202 710 68 768 15mm / 1/2" 2687 788 3396 996

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their steel radiators delivered to site.

Code Compatible Wall Stays Electric Heating Element
1200W Output
HAN103 HAN104 HAN205 HEF035 LD055 LD056 LD206
TOW202 Yes Yes Yes No Yes No Yes Yes
