Carsington 1 Column Cast Iron Radiator

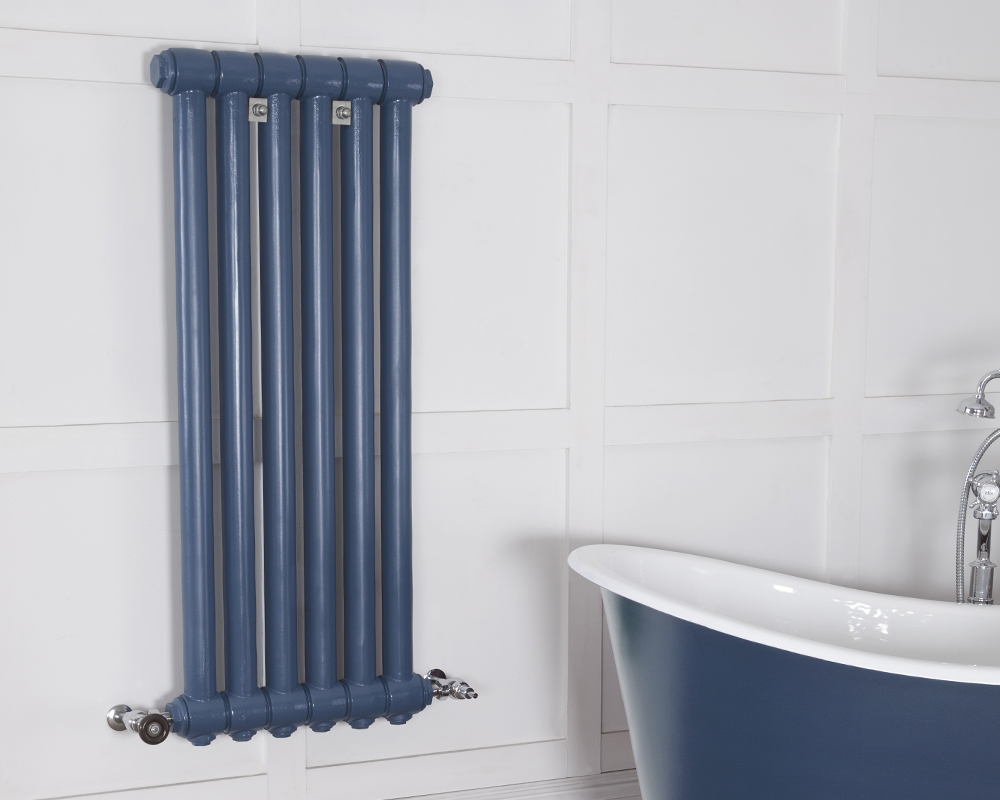

Farrow & Ball Stiffkey Blue

Description

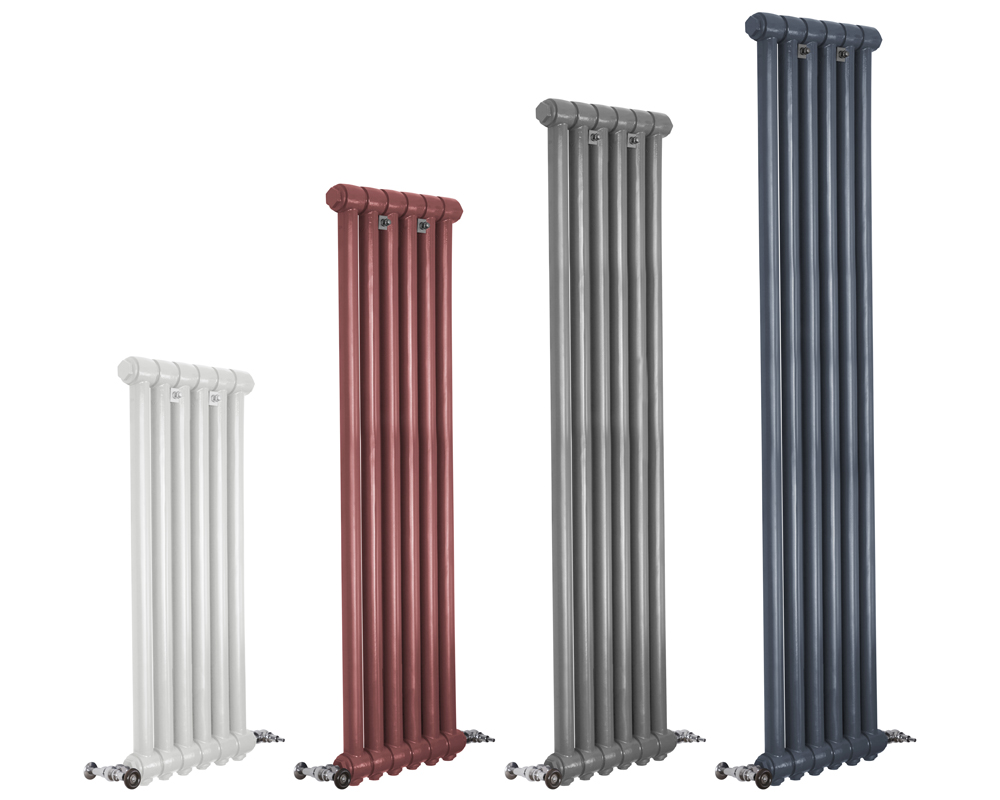

Available in a choice of heights, bespoke build to your required length. These radiators are wall mounted.

See Bespoke Finishes
Radiator section colours and finishes

Can be painted in any colour of your choice or why not choose from one of the many designer colours available.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase which can be arranged via your stockist.

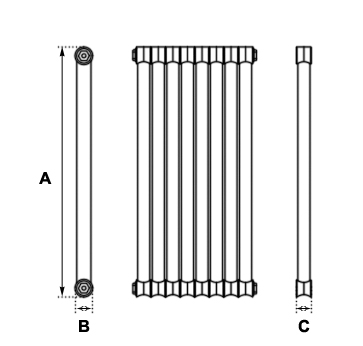

Dimensions / Further Details

* per section

Code Column
Qty
A
(mm)
B
(mm)
C
(mm)
ΔT 50°* ΔT 60°* Weight (KG)*
BTUs Watts BTUs Watts Empty Filled
TCR009 1 1090 88 65 296 87 375 110 6.01 7.76
TCR010 1 1490 88 65 399 117 505 148 8.48 10.89
TCR011 1 1690 88 65 470 138 593 174 9.47 12.21
TCR012 1 1890 88 65 518 152 655 192 10.65 13.5

The above measurements are given for guidance only and should not be used for the fixing of pipework.

Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

Code Compatible Wall Stays
HAN103 HAN104 HAN205 HEF035 LD055 LD056 LD206
TCR009 No No No No No No No
TCR010 No No No No No No No
TCR011 No No No No No No No
TCR012 No No No No No No No

Radiator Heating Elements

All our radiator heating elements are compatible with all our cast iron radiators.

Please refer to the table below for the minimum number of sections required for each radiator in this range. Denotes the minimum number of sections required to achieve maximum heat output for the heating element.

Heat Output 1200 Watts 1500 Watts 2000 Watts
Code
Minimum no. of sections Minimum no. of sections Minimum no. of sections
TCR009 9 (14) 9 (17) 10 (23)
TCR010 9 (10) 9 (13) 10 (17)
TCR011 9 (9) 9 (11) 10 (14)
TCR012 9 (8) 9 (10) 10 (13)
